Solar Max LED 160 + 80

Model	LED 160	LED 80
Dome Size	830mm	640mm
Max. Illumination (Lux)	180,000 Lux	160,000 Lux
Number of LEDs	160 LEDs	80 LEDs
Lamp type	Bi Conves Lens	Bi Conves Lens
Colour temperature(K)	3800K / 4300k / 4800K / 5300K	3800K / 4300k / 4800K / 5300K
CRI	96Ra	96Ra
Light filed diameter	100 ~ 350	100 ~ 300
Light filed depth	800 ~ 1,300	800 ~ 1,300
LED Life time	60,000 Hours ↑	60,000 Hours ↑
Focus control location	Side Nobs	Side Nobs
Intensity Control	10 Steps intensity	10 Steps intensity
Dimming range	10~100%( 1~10 Steps)	10~100%( 1~10 Steps)
Power consumption	240W	120W
Touch on/off	Button Panel	Button Panel
Touch on/off Option	Touch Screen	Touch Screen

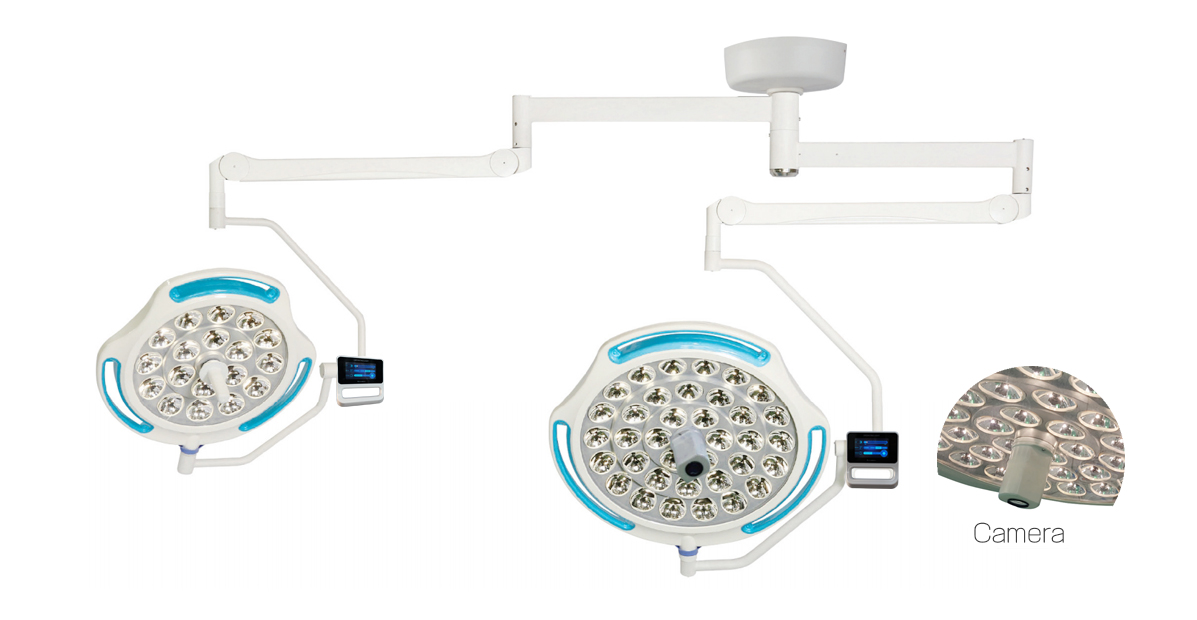

SolarMax LED160 + 80 with Camera

Camera
		MB-S129	MB-S128
Image Sensor		1/2" Sony CMOS Sensor
Total Pixels		1952(H) x 1113(V) = 2.17M Pixels	1952(H) x 1241(V) = 2.42M Pixels
Active Pixels		1937(H) x 1097(V) = 2.12M Pixels	1937(H) x 1097 (V) = 2.12M Pixels
Video Format		1080p@60/50fps, 1080i@60/50fps, 1080p@30/25fps, 720p@60/50fps, 720p@30/25fps	1080p@60/50fps, 1080p@30/25fps, 720p@60/50fps, 720p@30/25fps
Min.Illumination	color	0.01 lux / DSS 0.001 lux	0.15 lux / DSS 0.0375 lux
	BW	0.002 lux / DSS 0.0002 lux	0.01lux / DSS 0.002 lux
S/N Ratio		more than 50dB (AGC off)
Video Output		HD-SDI, EX-SDI, TVI, CVBS

Solar Max LED 80 + 50 With Camera

Model	LED 80	LED 50
Luminance(Lux)	160,000 Lux	140,000 Lux
Diameter of Light Head(CM)	83	64
Number of Bulbs	108	54
Colour temperature(K)	3800K / 4300k / 4800K / 5300K	3800K / 4300k / 4800K / 5300K
Colour Render index(Ra)	95	95
Red Color index(R9)	94	94
Illumination Depth(CM)	110	70
Light Filed Diameter(CM)	12-35	12-35
Buld Service Life(H)	50,000	50,000

HD Camera System Specification
Imager	l/3 Type CMOS Sensor
Picture elements	200K pixels
Lens	20x zoom F=4.7mm {WIDE)to 94.00mm(TELE), Fl.6 to F3.5 Zoom movement speed
Digital zooom	12x(240x width optical zoom]
Angle of view(H)	Approx 55.4 degrees (WIDE end) Approx 2.9 degrees (TELE end) (1080i mode) Approx 37.6 degrees (WIDE end) Approx 2.0 degrees (TELE end) (720p mode)
Min.working distance	10mm(WIDE end), 80αnm (TELE end)
Sync System	Internal
Min iIIumination	0.5 lux/ 1 / 300sec., 50%(High Sensitivity mode ON)
(1nterlace model)	1.7 LUX / 1 / 30 sec., 50% (Typical value) 0.26 Lux / 1/ 4sec(NTSC)， 3/1sec(PAL) (typical value) ICR-ON Mode 0.0005 Lux / 1 / 4 sec (NTSC), 1/3 sec(PAL)
Recommended iIIumination	100 to 100,000 Lux 1000 mm(Tele end)
S/N ratio	50dB (Weight ON)
Back light compensationn	ON/OFF
Electronic shutter speed	60/30 mode: 1/1 to 1/10000 sec，(22 steps) 5O/25 mode: 1/1 to 1/10000 sec，(22 steps)
White balanæ	Auto， ATW， lndoor， Outdoor， One push WB, Manual WB, outdoor Auto, Sodium Vapor Lamp (Fix/Auto]
Gain	Auto / Manual (-3 dB to +28dB. 16 steps) Max.Gain Limit (6 dB to 28 dB. 12 steps)
Wide dynamic range	ON / OFF / AUTO
Noise reduction	ON/OFF (level5 to 1/ OFF, 6 steps)
Color Enhancement	ON/OFF
Aperture Control	16 steps
Preset	6 POSITIONS
Serial interface	VlSCA protocol (TTL/CMOS) 9.6 Kbps, 19.2 Kbps, 38.4 Kbps. Stop bit. 1/2 bit
Storage temperature/Humidity	-20’C to +60’C(-4’F to +l40’F)/20% to 95%
Operating temperature/Humidity	-5'C to +60’C(32’F to +122’F)/20% to 95%
Power requirements/Power consumption	6 to 12V DC/3.1W (4.7W)
Weight	Approx. 270g (8.10z)
Dimensions	50.0 x 6O x 87.9 mm [2x2%x31/2 in.) (w/h/d)
Protocol	Command, Fastrax, Pelco-D, Pelco-P, VISCA

Solar Max LED 80 + 80

Solar Max LED 80 + 80
Conntry of Origin	Made in korea (Republic of)
Max. Illumination (Lux)	140,000~160,000 Lux + 140,000~160,000 Lux
Light intensity adjustble range	10 ~ 100%
Lamp head diameter	640mm
Lamp Type	Bi Convex Lens
Number of LEDs	80 LEDs + 80 LEDs
LED Life time	50,000 hours
Colour temperature(K)	3800K / 4300k / 4800K / 5300K
CRI (colour rendering index)	96Ra
Light field diameter	Φ100 ~ 300mm
Focus control location	Handle of center
Dimming range	10~100%(1~10 Steps)
Handle	easily detachable and sterilizable
Power consumption	92W + 92W
Touch on/off	Button Panel & Remote (option)

Solar Max LED 70 + 50

Solar Max LED 70 + 50
Diameter of light head	700mm	500mm
Max. Illumination (Lux)	160,000 Lux at 1M	120,000 Lux at 1M
Color temperature (K)	3,000K~6,700K	3,000K~6,700K
Color Render Index (CRI)	95Ra	95Ra
Intensity control	10 Steps	10 Steps
Diameter of focusing field	150~300mm	150~300mm
Light field depth	1,100mm	1,100mm
Number of LEDs	80 LEDs	48 LEDs
Lamp type	Bi Convex Lens	Bi Convex Lens
LED life time	60,000 Hours ↑	60,000 Hours ↑
Focus control location	Handle of Center	Handle of Center
Handle	Easily Detachable and Sterilizable	Easily Detachable and Sterilizable
Input Power	100W	80W
Power source	AC220V, 50/60HZ	AC220V, 50/60HZ
Touch on/off	Button Panel	Button Panel

Solar Max LED 50 + 50

Solar Max LED 50 + 50
Diameter of light head	500mm	500mm
Max. Illumination (Lux)	120,000 Lux at 1M
Color temperature (K)	3,000K~6,700K
Color Render Index (CRI)	95Ra
Intensity control	10 Steps
Diameter of focusing field	150~300mm
Light field depth	1,100mm
Number of LEDs	48 LEDs
Lamp type	Bi Convex Lens
LED life time	60,000 Hours ↑
Focus control location	Handle of Center
Handle	Easily Detachable and Sterilizable
Input Power	100W
Power source	AC220V, 50/60HZ
Touch on/off	Button Panel

Solar Max LED 56 + 40

Model	LED 56	LED 40
Dome Size	685mm	550mm
Max. Illumination (Lux)	140,000 Lux	120,000 Lux
Number of LEDs	56 LEDs	40 LEDs
Lamp type	Bi Conves Lens	Bi Conves Lens
Colour temperature(K)	4,300 ± 100	4,300 ± 100
CRI	96Ra	96Ra
Light filed diameter	100 ~ 300	100 ~ 300
Light filed depth	850 ~ 1,000	800 ~ 1,000
LED Life time	50,000 Hours	50,000 Hours
Focus control location	Side Nobs	Side Nobs
Intensity Control	10 Steps intensity	10 Steps intensity
Dimming range	10~100%( 1~10 Steps)	10~100%( 1~10 Steps)
Power consumption	115W	110W
Touch on/off	Button Panel	Button Panel

Solar Max LED 40 + 40

Solar Max LED 40 + 40
Lamp diameter	550mm + 550mm
Lamp type	convex lens
Max. Illumination (Lux)	120,000 Lux + 120,000 Lux
Colour temperature(K)	4,200K ± 100
CRI (colour rendering index)	≥96Ra
Light field diameter	Φ100 ~ 300mm
Light field depth	850 ~ 1,100mm
Number of LEDs	80(40+40)EA
LED Life time	50,000 hours
Touch on/off	Button Panel & Remote (option)
Power consumption	60W + 60W
Dimming range	20~100%(5 Steps)
Opto semiconductors	Germany Mdedical Osram

Solar Max LED 20 + 20

Solar Max LED 20 + 20
Luminance (Lux)	21,000 ~ 100,000 + 21,000 ~ 100,000
Dianeter of Light Head (CM)	30+30
Number of Bulbs	21+21
Colour temperature(K)	4300
Color Render Index (Ra)	95
Red Color Index (R9)	94
Focusing Depth (CM)	140
Light Field Diameter (CM)	18
Luminance Adjust	9 Steps, 10%-100%
Buld Service Life (H)	>50000
